Installing AdGuard

Deploy AdGuard Home in Docker using a dedicated service user iamdocker, complete the first-run setup UI, then enable HTTPS for the admin interface using a locally generated certificate stored in a mounted volume.

Prerequisites#

• Docker & Docker Compose installed on the host.
• Service account iamdocker that is a member of the docker group.
• Decide the host IP(s) or interfaces AdGuard will bind to.

Directories (create as iamdocker)#

sudo -u iamdocker mkdir -p /opt/dockerstacks/adguard/{confdir,workdir,certs}

docker-compose — first run (setup UI)#

Create /opt/dockerstacks/adguard/docker-compose.yml for first-run UI exposed on port 3000.
(port 3000 will removes after setup).

services:
  adguardhome:
    image: adguard/adguardhome:latest
    container_name: adguardhome
    restart: unless-stopped
    networks:
      - agh-bridge
    ports:
      # DNS (bind only to interfaces you intend to serve)
      - "100.109.X.X:53:53/tcp"
      - "100.109.X.X:53:53/udp"
      - "192.168.X.X:53:53/tcp"
      - "192.168.X.X:53:53/udp"

      # Admin UI (HTTP)
      - "100.109.X.X:11080:80/tcp"
      - "192.168.X.X:11080:80/tcp"

      # First-run setup UI — remove after initial configuration
      - "100.109.X.X:3000:3000/tcp"
      - "192.168.X.X:3000:3000/tcp"

    volumes:
      - /opt/dockerstacks/adguard/workdir:/opt/adguardhome/work
      - /opt/dockerstacks/adguard/confdir:/opt/adguardhome/conf

networks:
  agh-bridge:
    driver: bridge

Start docker container as iamdocker.

sudo -u iamdocker docker compose -f /opt/dockerstacks/adguard/docker-compose.yml up -d

Access the setup wizard via the initial UI port (e.g., http://<host-ip>:3000).

1. Click Get started.

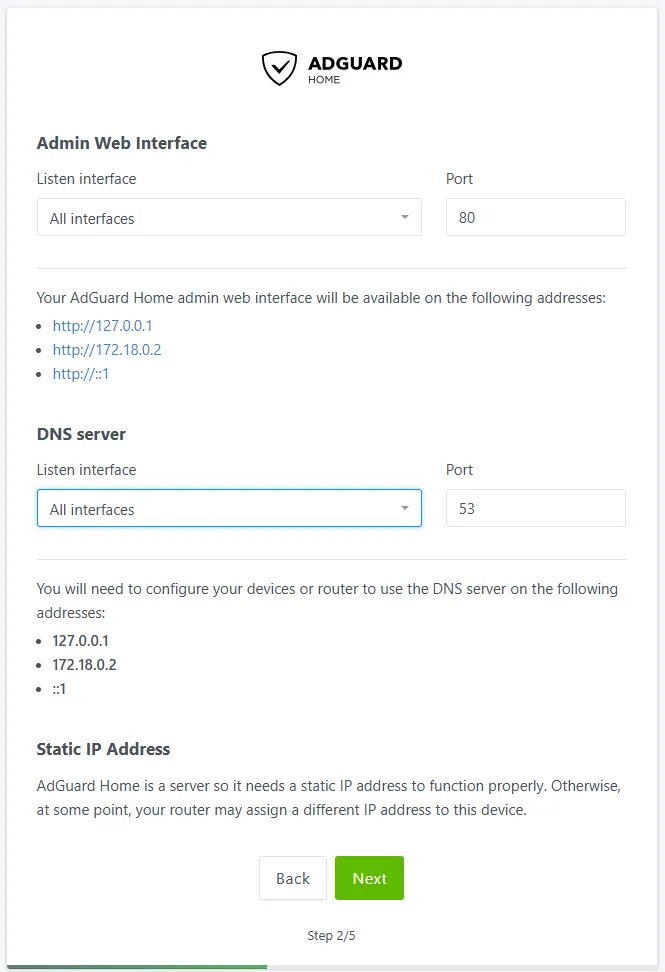

2. Verify DNS listen interfaces/Admin Web interfaces and ports; adjust if needed.

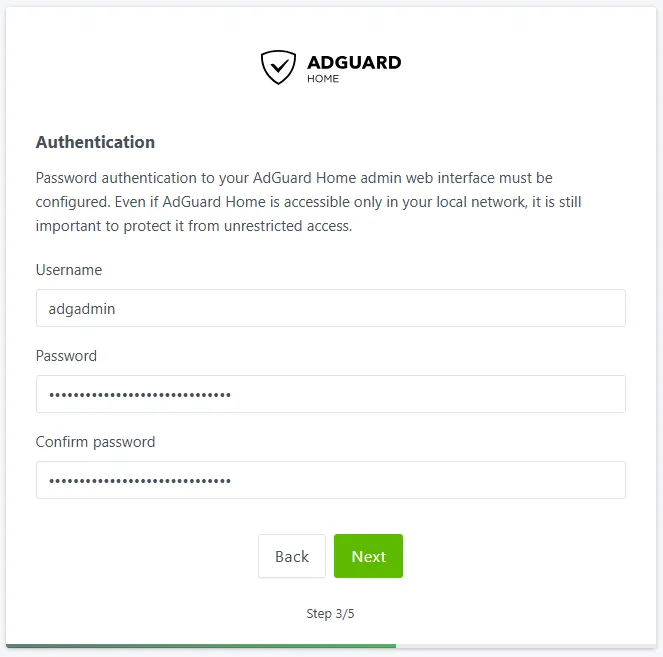

3. Set admin username/password.



4. Configure DNS distribution (router, Tailscale, or per-device).
   Recommendation: set a reliable secondary DNS (e.g., 9.9.9.9) as a fallback.

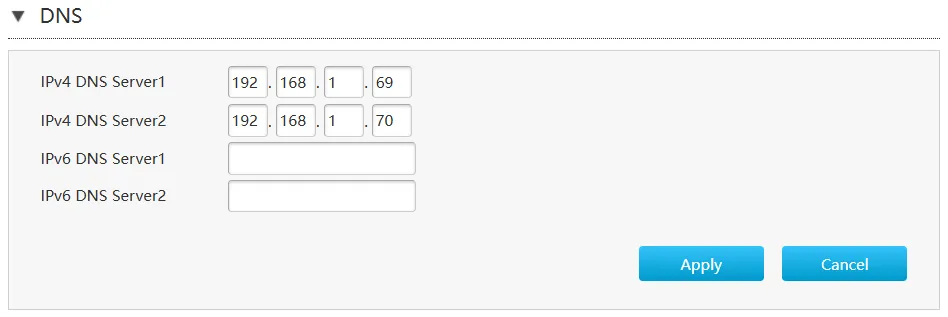

   Router Configuration

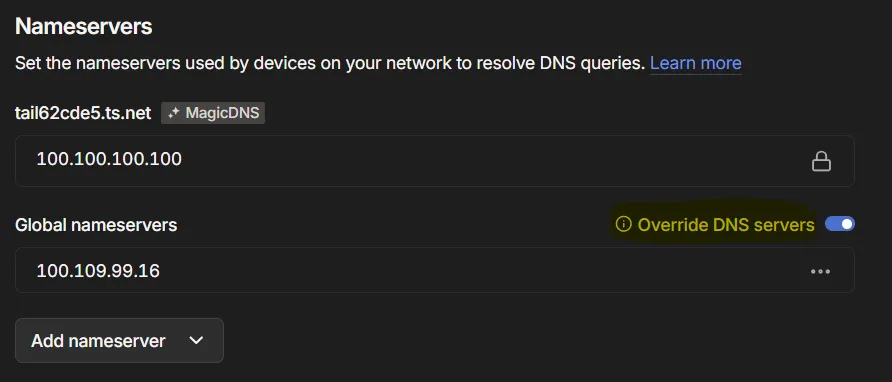

   If using Tailscale, enable Override local DNS to push AdGuard to your tailnet.



5. Complete the wizard. The service will restart automatically on your set port number.

Remove setup UI (port 3000)#

After initial setup, stop the stack, remove port 3000 entries from docker-compose.yml, then restart.

sudo -u iamdocker docker compose -f /opt/dockerstacks/adguard/docker-compose.yml down
# edit compose file to remove the 3000 ports
sudo -u iamdocker docker compose -f /opt/dockerstacks/adguard/docker-compose.yml up -d

Minor configuration changes (example)#

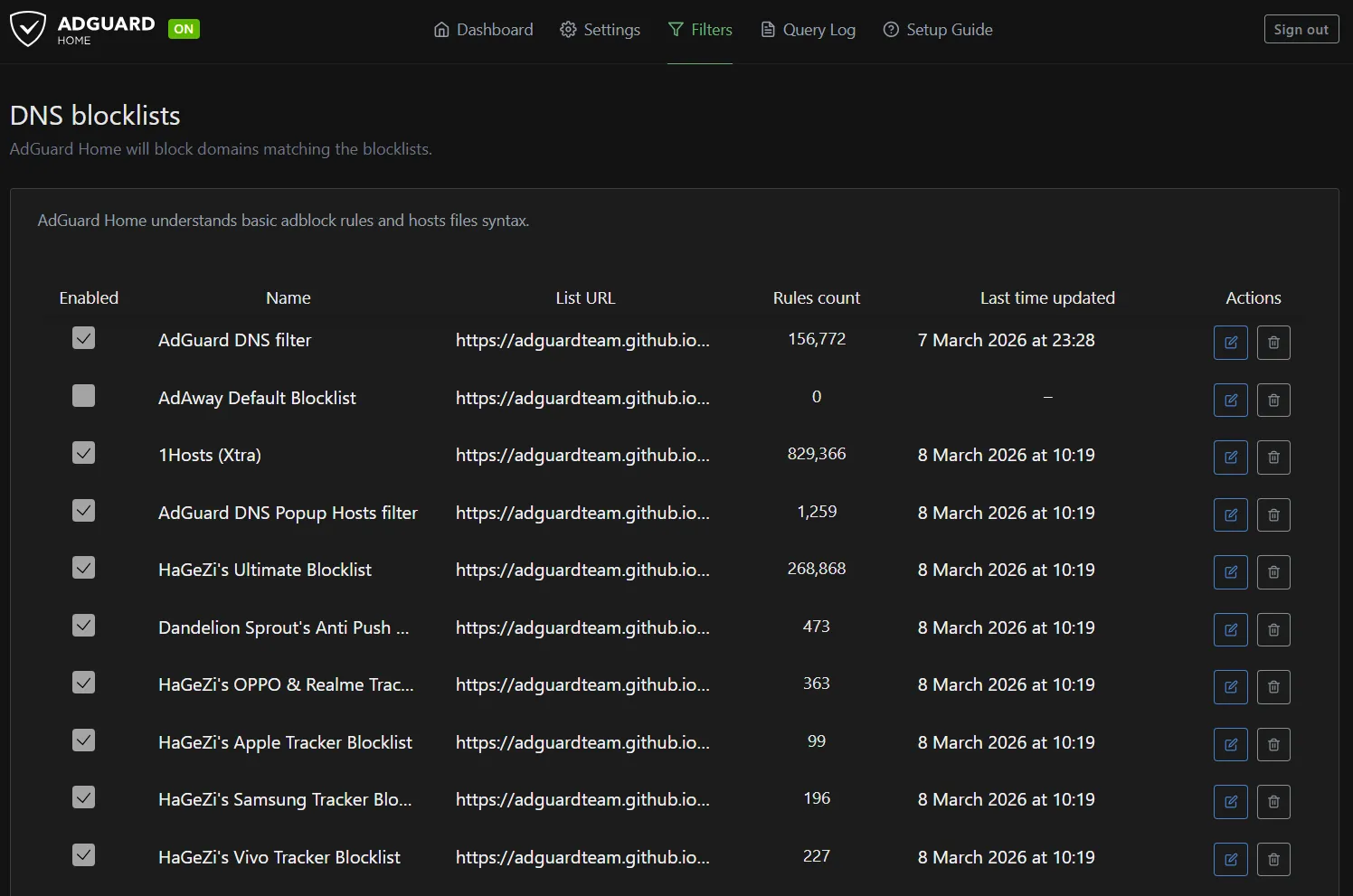

• Blocklists: Navigate to Filters > DNS Blocklists. Subscribe to additional lists (e.g., AdGuard’s default DNS blocklist, plus StevenBlack or OISD for comprehensive coverage). Enable and apply.

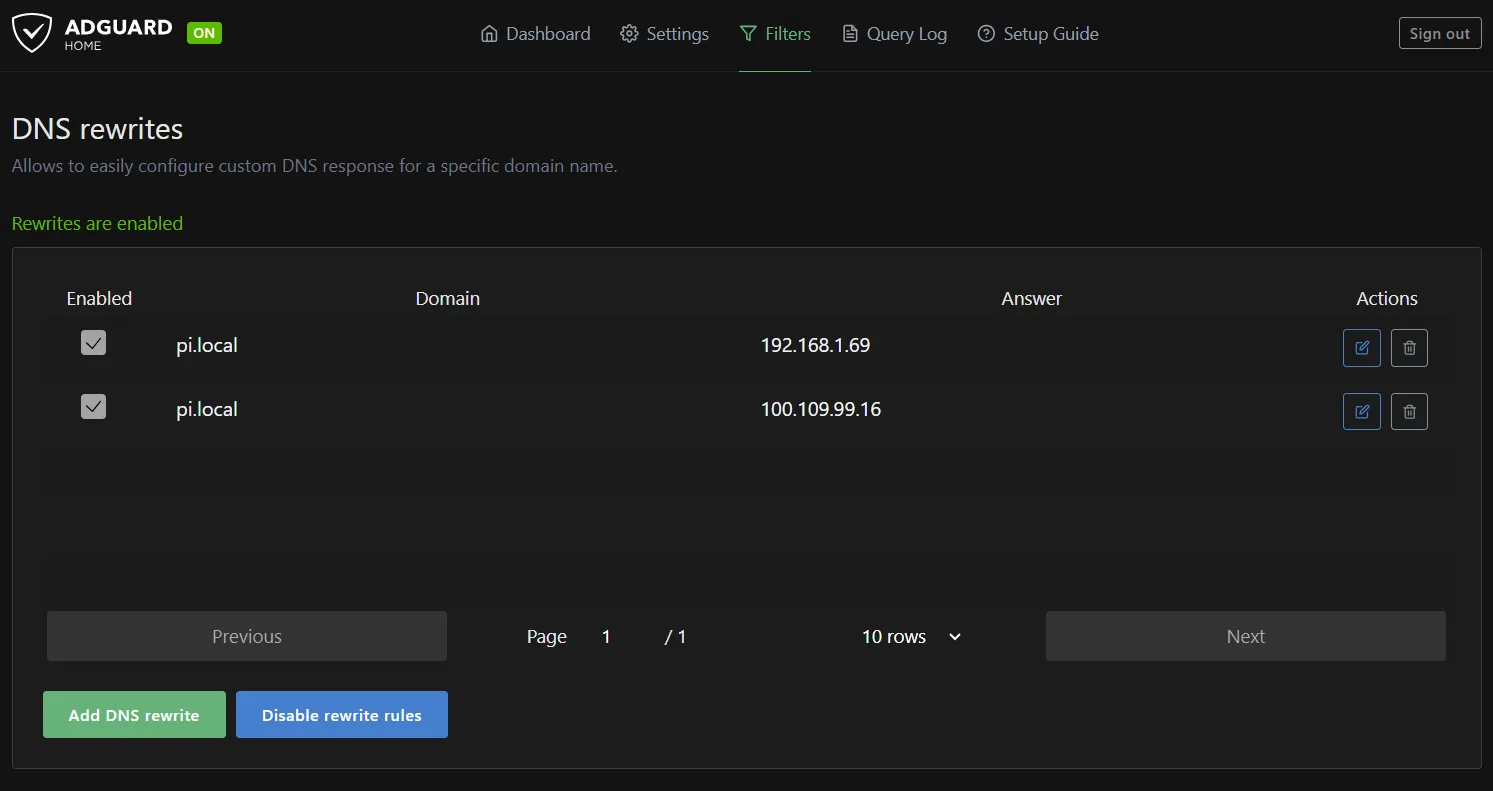

• DNS Rewrites: Under Settings > DNS Rewrites, add entries for local resolution
  (e.g., pi.local → 192.168.X.X and 100.109.X.X for seamless access to the Pi).
  This simplifies internal navigation without public DNS reliance.



Enable HTTPS on Admin UI (self-signed)#

1. Stop the stack and edit docker-compose.yml to add HTTPS ports and certs volume.

   sudo -u iamdocker docker compose -f /opt/dockerstacks/adguard/docker-compose.yml down

   bash

   services:
   adguardhome:
       image: adguard/adguardhome:latest
       container_name: adguardhome
       restart: unless-stopped

       networks:
       - agh-bridge

       ports:
       # DNS (unchanged)
       - "100.109.X.X:53:53/tcp"
       - "100.109.X.X:53:53/udp"
       - "192.168.X.X:53:53/tcp"
       - "192.168.X.X:53:53/udp"
       - "192.168.X.X:53:53/tcp"
       - "192.168.X.X:53:53/udp"

       # Admin UI HTTP (redirects to HTTPS)
       # - "100.109.X.X:11080:80/tcp"

       # Admin UI HTTPS (Limited to VPN for secuirty)
       - "100.109.X.X:11443:443/tcp"

       volumes:
       - /opt/dockerstacks/adguard/workdir:/opt/adguardhome/work
       - /opt/dockerstacks/adguard/confdir:/opt/adguardhome/conf
       - /opt/dockerstacks/adguard/certs:/opt/adguardhome/certs # New volume

   networks:
   agh-bridge:
       driver: bridge

   yaml

   code

2. Generate self-signed certificate as iamdocker.

   Change the pi.local with your local DNS address.

   sudo -u iamdocker openssl req -x509 -nodes -days 365 \
   -newkey rsa:2048 \
   -keyout /opt/dockerstacks/adguard/certs/adguard.key \
   -out /opt/dockerstacks/adguard/certs/adguard.crt \
   -subj "/CN=pi.local"

   bash

3. Configure AdGuard to use the cert

   edit /opt/dockerstacks/adguard/confdir/AdGuardHome.yaml and update the tls block.

   tls:
   enabled: true
   force_https: true
   port_https: 443
   certificate_path: /opt/adguardhome/certs/adguard.crt
   private_key_path: /opt/adguardhome/certs/adguard.key

   yaml

4. Restart the stack

   sudo -u iamdocker docker compose -f /opt/dockerstacks/adguard/docker-compose.yml up -d

   bash

5. Access the https://<host-ip>:11443. Browsers will warn for a self-signed certificate; import the .crt into clients you control or replace with a CA-signed cert.

Recommendation: production / public access#

For public exposure, terminate TLS at a reverse proxy (Caddy/Traefik/Nginx with ACME). Let the proxy handle certificates and proxy traffic to AdGuard’s admin port. Disable AdGuard’s internal TLS in that configuration.

AdGuard Home is now running as a containerized DNS service in the homelab.

All devices on the LAN and Tailscale network can now use the Pi for centralized DNS filtering and resolution.
